Shop

Home Trailer Parts Corner Steadies XO Corner Steadies

XO Corner Steadies

Code: N/A
Rated 4.96 out of 5 based on 27 customer ratings
(27 customer reviews)
trailer stabilisers
Adjustable trailer jack with blue handle and foot plate.

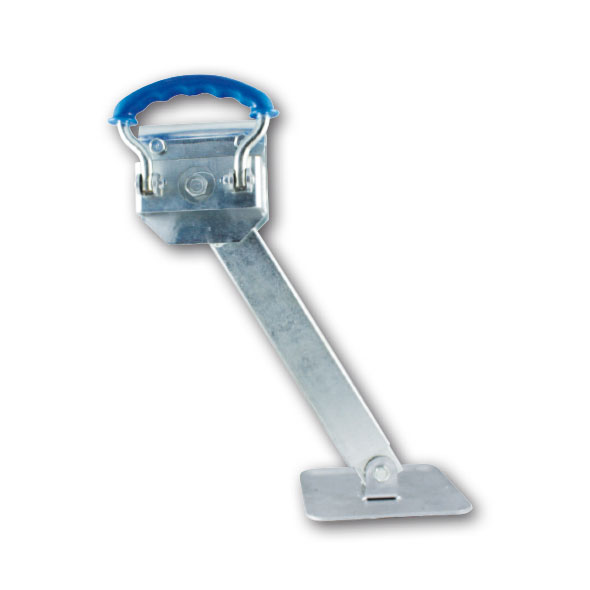

Silver trailer jack with blue handle.

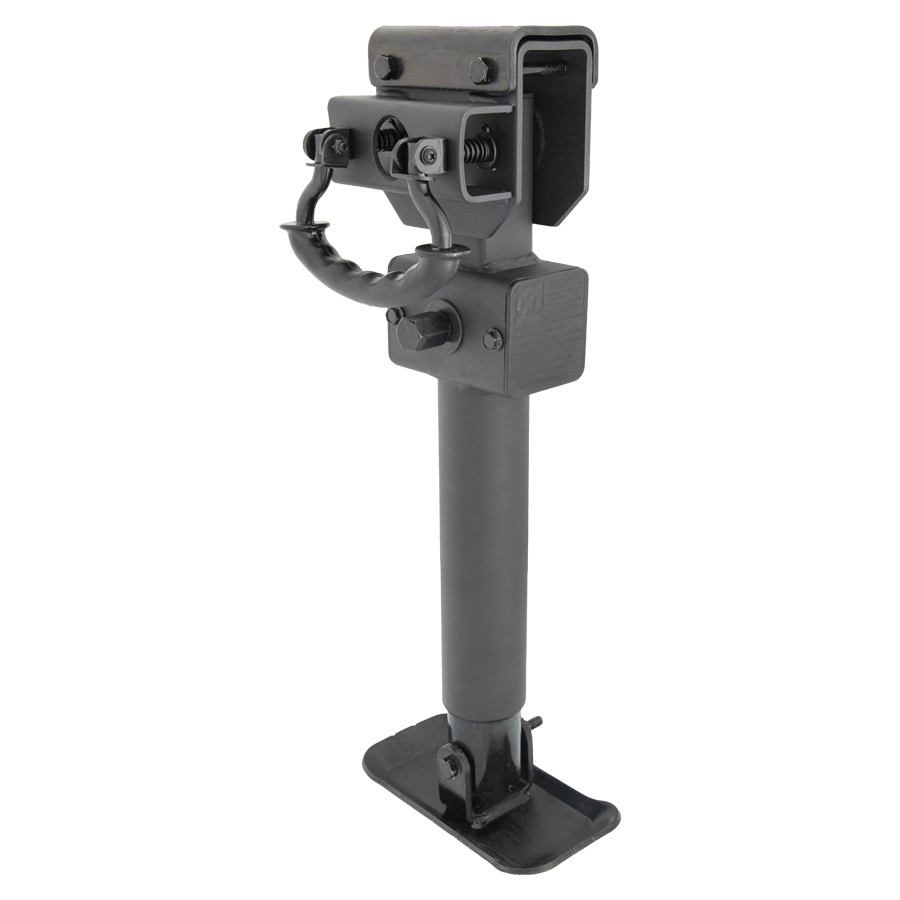

Angled view of black trailer jack with black handle.

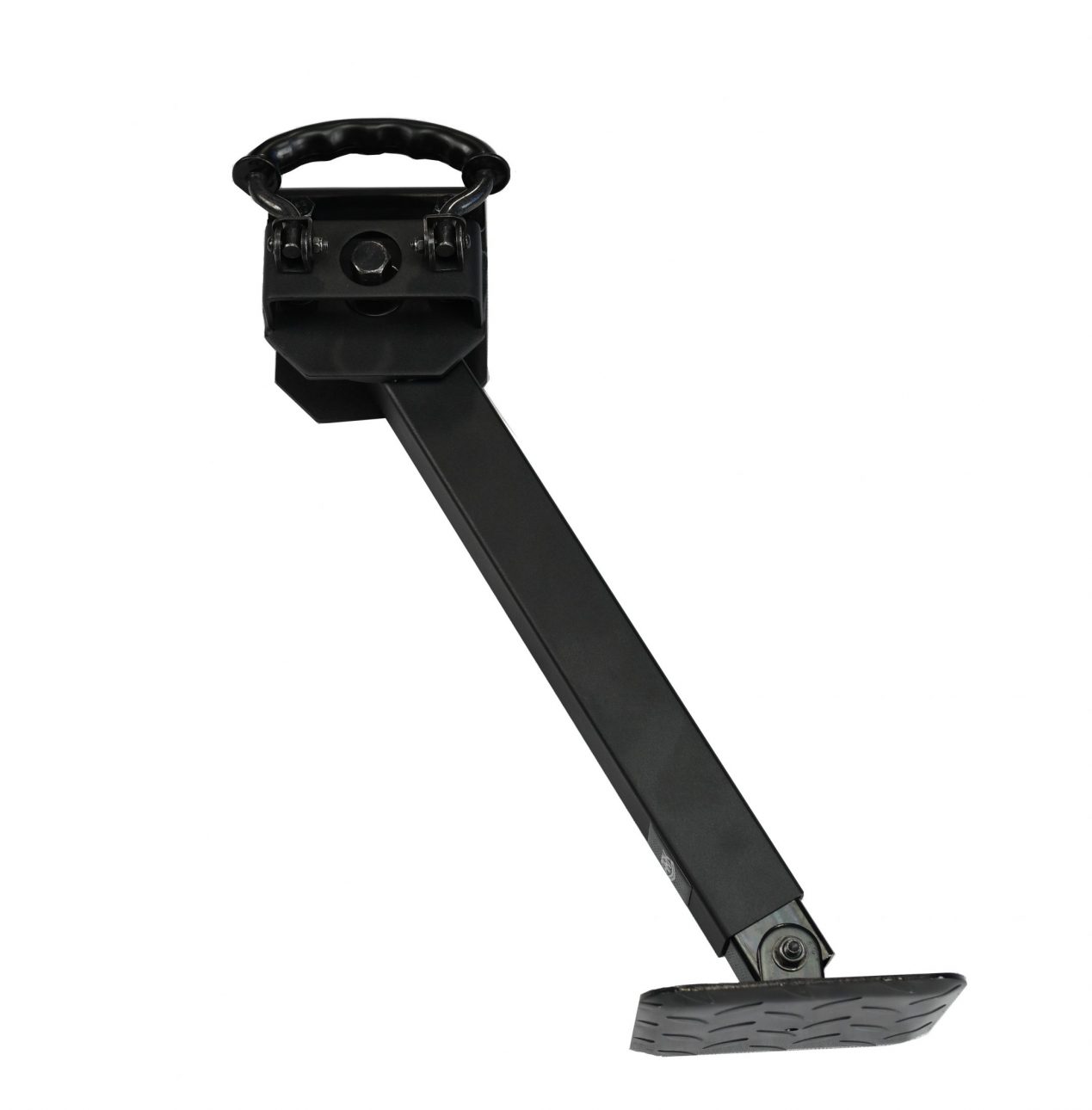

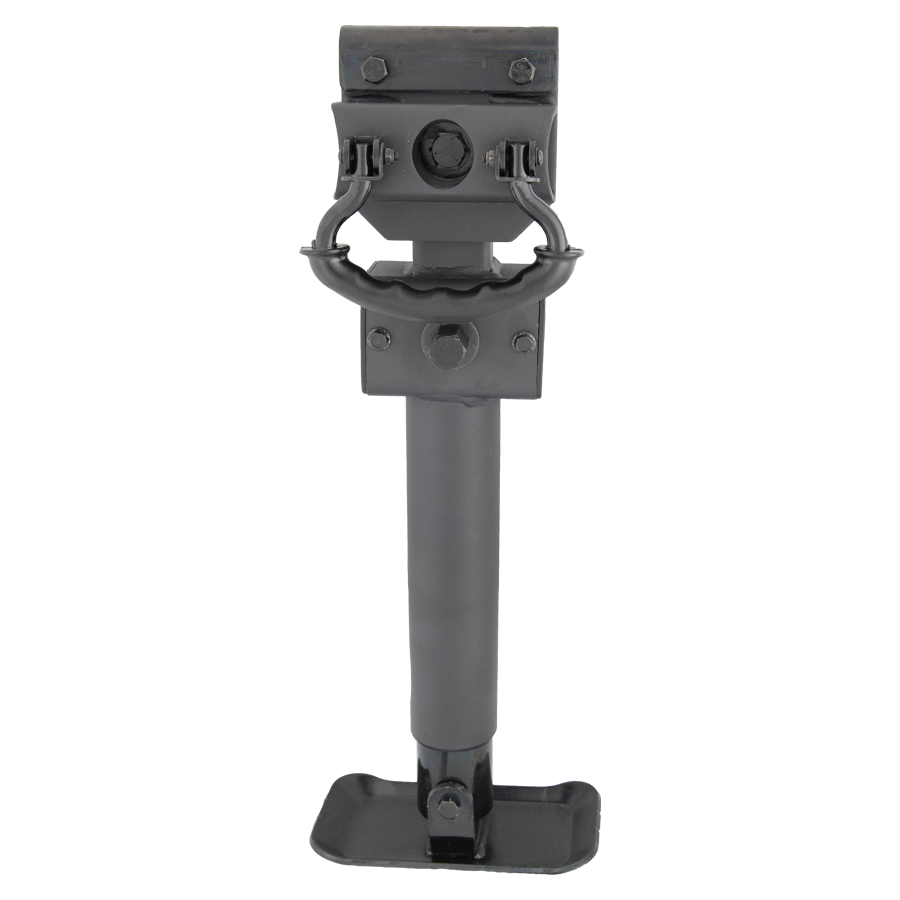

Black trailer jack with black handle.
trailer stabilisers
Adjustable trailer jack with blue handle and foot plate.
Silver trailer jack with blue handle.
Angled view of black trailer jack with black handle.
Black trailer jack with black handle.

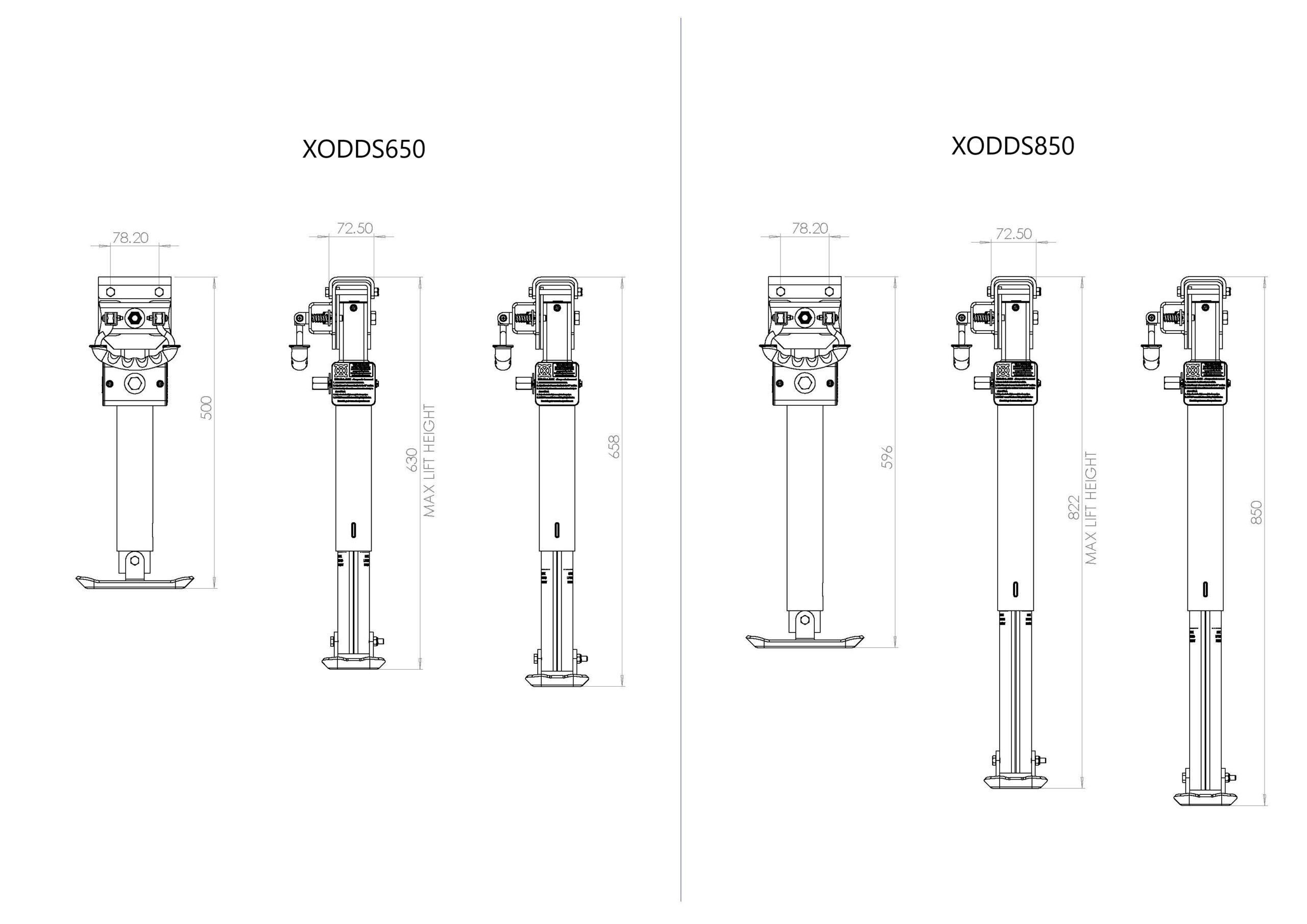

  • Available in 650mm and 850mm extensions
  • 875kg weight rating in 90-degree position
  • Non rated stabilizer in 30 and 60-degree positions
  • Comes in Zinc and Black powder coat/ Black zinc finish
  • 600 hr salt spray tested
  • Can be used as a corner steady to stabilize your trailer or Jack to aid in tire changes
  • Can be used with high lift jack base for extra-wide footprint on soft ground

$149.95 – $194.95

In Stock
Clear

Warranty: 2 Years

ADD TO CART

SHARE

Customer Reviews

Part No. Image Finish Length Price Quantity Add to cart
XODDS650B Angled view of black trailer jack with black handle. Black Powder Coat / Black Zinc 650mm $179.95
- +
XODDS650 Adjustable trailer jack with blue handle and foot plate. Zinc 650mm $149.95
- +
XODDS850B Angled view of black trailer jack with black handle. Black Powder Coat / Black Zinc 850mm $194.95
- +
XODDS850 Adjustable trailer jack with blue handle and foot plate. Zinc 850mm $164.95
- +
×
  • Details
  • Specifications
  • Videos
  • Reviews (27)

Description

XO Series Corner Steady – Drop Down Jack

Versatile dual function corner steady and jack to aid in changing tyres or recoveries. Stronger 19mm hex drive can be used with corner steady winding handles, Wheel brace or impact driver

Additional information

27 reviews for XO Corner Steadies

5.0
Based on 27 reviews
5 star
96
96%
4 star
3
3%
3 star
0%
2 star
0%
1 star
0%

Customer Images

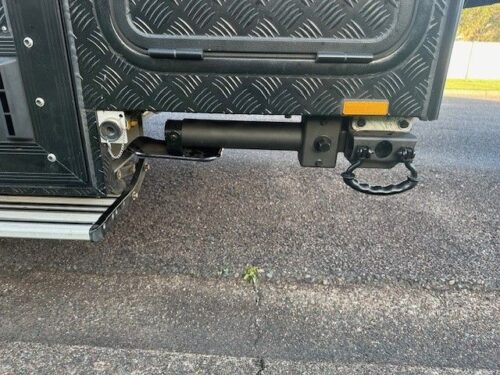

Image #1 from stephen

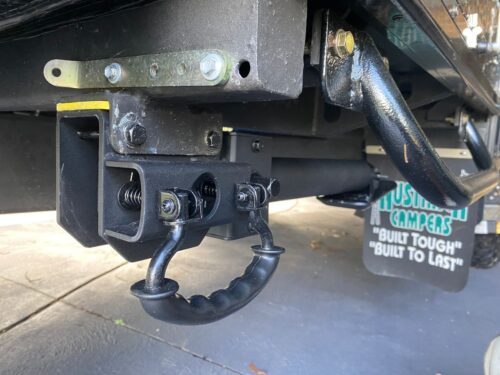

Image #1 from richard rossiter
Image #2 from richard rossiter

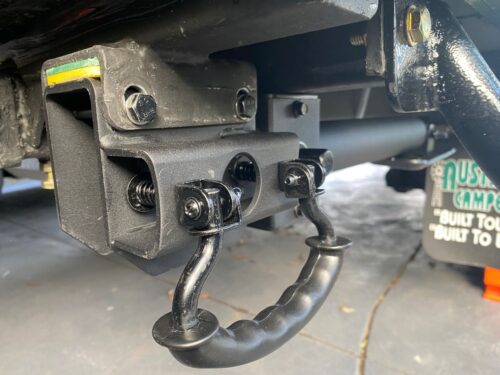

Image #3 from richard rossiter
Image #1 from stephen

stephen

26/10/2024

fantastic product, looks great in the Black. A bit of a ream out of the original mounts and fitted straight in.

Image #1 from richard rossiter

richard rossiter

06/04/2023

Brilliant - so many caravans have standard steadies that cant act as jacks making it difficult on uneven ground. Also very useful for emergency jacking up for wheel problems. Retrofitting suggestions - the hole spacing horizontally is perfect for most caravans - but the vertical position and hole diameter were not the same for my Austrack Tanami 13X which has 10mm holes (vs 8mm for ARC) and different vertical positioning by a few mm's. So I had to make a plan - and found that simple window packers (20 ton load bearing) hammered into the space did the job resolving issue. see attached

Image #2 from richard rossiter

richard rossiter

06/04/2023

Brilliant - so many caravans have standard steadies that cant act as jacks making it difficult on uneven ground. Also very useful for emergency jacking up for wheel problems. Retrofitting suggestions - the hole spacing horizontally is perfect for most caravans - but the vertical position and hole diameter were not the same for my Austrack Tanami 13X which has 10mm holes (vs 8mm for ARC) and different vertical positioning by a few mm's. So I had to make a plan - and found that simple window packers (20 ton load bearing) hammered into the space did the job resolving issue. see attached

Image #3 from richard rossiter

richard rossiter

06/04/2023

Brilliant - so many caravans have standard steadies that cant act as jacks making it difficult on uneven ground. Also very useful for emergency jacking up for wheel problems. Retrofitting suggestions - the hole spacing horizontally is perfect for most caravans - but the vertical position and hole diameter were not the same for my Austrack Tanami 13X which has 10mm holes (vs 8mm for ARC) and different vertical positioning by a few mm's. So I had to make a plan - and found that simple window packers (20 ton load bearing) hammered into the space did the job resolving issue. see attached

Image #1 from stephen
Image #1 from richard rossiter
Image #2 from richard rossiter
Image #3 from richard rossiter
1-5 of 27 reviews
  1. Clive B. au
    Verified owner
    24/10/2025

    The legs seem very robust, I haven’t set up my caravan using them, but I am happy so far

  2. Gerhard n. au
    Verified owner
    19/10/2025

    Have only just fitted them so not tried as a stabiliser but did tried as a caravan jack works well

  3. Doug au
    Verified owner
    17/06/2025

    as described, and significantly stronger than the normal ones, should be a great addition

  4. Jean-Max au
    Verified owner
    07/04/2025

    Very easy to install, quick delivery.

  5. Anna B. au
    Verified owner
    08/03/2025

    Exceptional service – each time that we have dealt with ARK, products have arrived quickly. They were also helpful when we ordered the wrong product and had to return this item. We purchased the black corner steadies – a very well-made product.

Sorry, no reviews match your current selections

Add a review
You must be logged in to post a review Log In

Related products

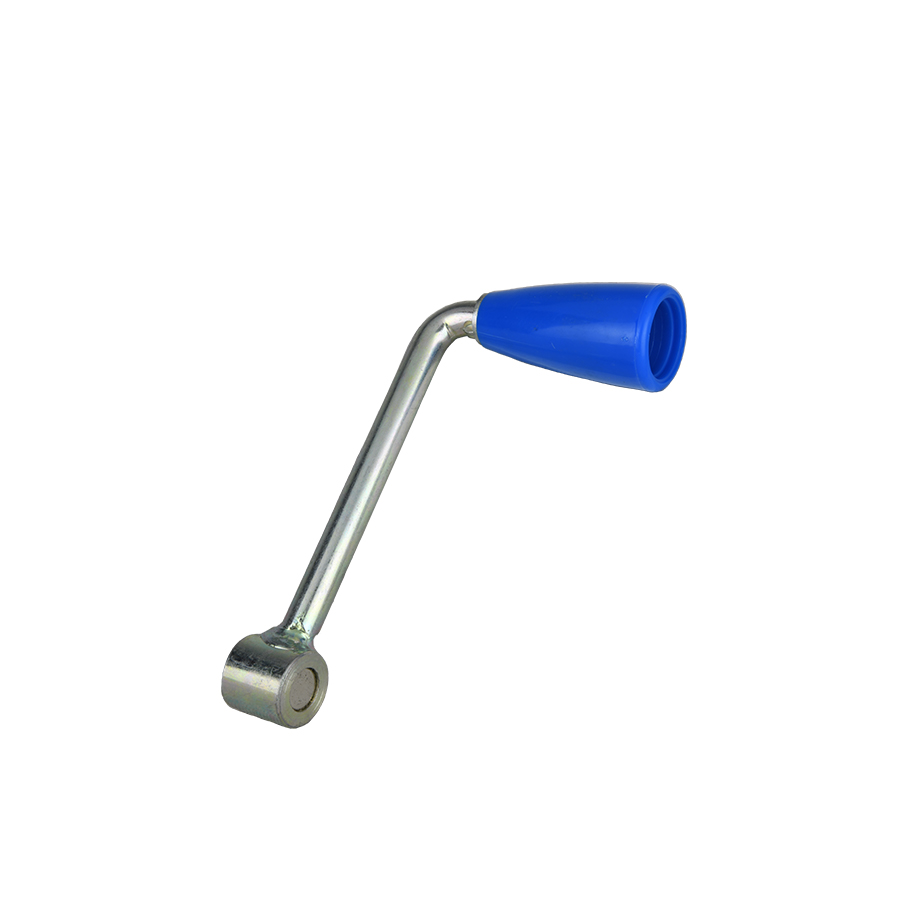

  • Replacement XO750 Black Edition Winding Handle
